Combiners Systems — RF Combiners for VHF/UHF

VHF ·136-175 MHz

Combiners VHF-CMB-8-8

VHF 8-Channel Cavity Combiner (8-Inch)

136-175 MHz, 8 channels, 150 W/port, > 75 dB isolation, 4.0 dB IL @ ΔTx 150 kHz. 36U.

Frequency Range: 136-175 MHz
Max. Input Power: Up to 150 W
Isolation: > 75 dB
Insertion Loss: 4.0 dB
VSWR: ≤ 1.50:1
Impedance: 50 Ω
Connector: N(f)
Weight: 52.00 kg
Dimensions: 850 × 482 × 1600 mm
Cavity Diameter: 8"
Channels: 8
Frequency Stability: 0.8 ppm/°C
Operating Temp.: -30°C to +60°C
Mounting: 19-inch rack

Go to Product Request quote

UHF ·380-470 MHz

Combiners UHF-CMB-2-8

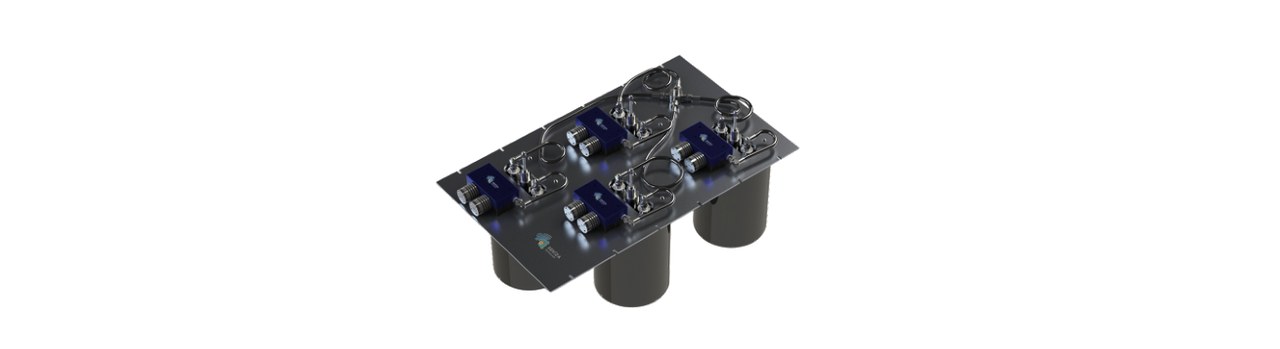

2-Channel Cavity Combiner UHF (8-Inch)

2 channel UHF combiner, 380-470 MHz, > 75 dB Tx-Tx isolation, 2.5 dB IL @ 450 kHz, 150 W.

Frequency Range: 380-470 MHz
Max. Input Power: Up to 150 W
Isolation: > 75 dB
Insertion Loss: 2.5 dB
VSWR: ≤ 1.50:1
Impedance: 50 Ω
Connector: N(f)
Weight: 10.00 kg
Dimensions: 420 × 482 × 400 mm
Cavity Diameter: 8"
Channels: 2
Frequency Stability: 0.8 ppm/C
Operating Temp.: -30C to +60C
Mounting: 19-inch rack (9U)

Go to Product Request quote

UHF ·380-470 MHz

Combiners UHF-CMB-3-8

3-Channel Cavity Combiner UHF (8-Inch)

3 channel UHF combiner, 380-470 MHz, > 75 dB Tx-Tx isolation, 3.0 dB IL @ 450 kHz, 150 W.

Frequency Range: 380-470 MHz
Max. Input Power: Up to 150 W
Isolation: > 75 dB
Insertion Loss: 3.0 dB
VSWR: ≤ 1.50:1
Impedance: 50 Ω
Connector: N(f)
Weight: 15.00 kg
Dimensions: 420 × 482 × 578 mm
Cavity Diameter: 8"
Channels: 3
Frequency Stability: 0.8 ppm/C
Operating Temp.: -30C to +60C
Mounting: 19-inch rack (13U)

Go to Product Request quote

VHF ·136-175 MHz

Combiners VHF-CMB-3-8

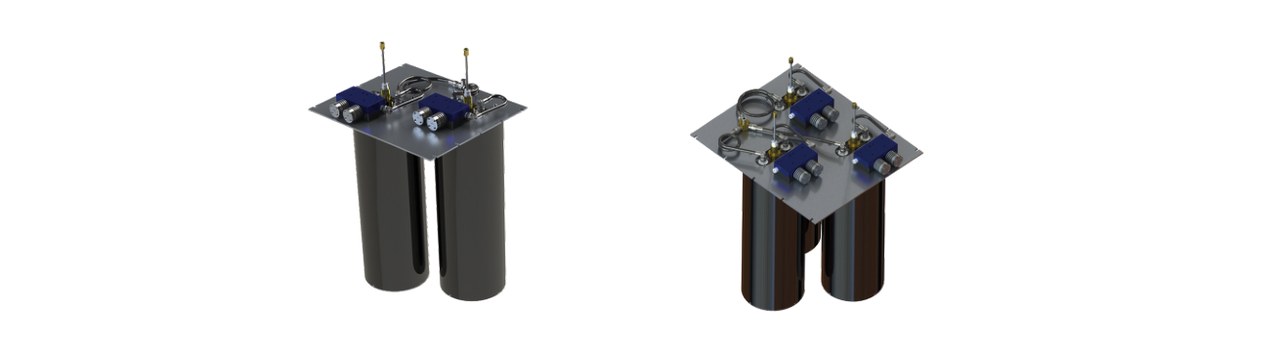

3-Channel Cavity Combiner VHF (8-Inch)

3 channel VHF combiner, 136-175 MHz, > 75 dB Tx-Tx isolation, 3.0 dB IL @ 150 kHz, 150 W.

Frequency Range: 136-175 MHz
Max. Input Power: Up to 150 W
Isolation: > 75 dB
Insertion Loss: 3.0 dB
VSWR: ≤ 1.50:1
Impedance: 50 Ω
Connector: N(f)
Weight: 20.00 kg
Dimensions: 850 × 482 × 578 mm
Cavity Diameter: 8"
Channels: 3
Frequency Stability: 0.8 ppm/C
Operating Temp.: -30C to +60C
Mounting: 19-inch rack (13U)

Go to Product Request quote

4-Channel Cavity Combiner Airband (8-Inch)

VHF ·112-137 MHz

Combiners AIRB-CMB-4-8

4-Channel Cavity Combiner Airband (8-Inch)

4 channel airband combiner, 112-137 MHz, > 75 dB isolation, 3.2 dB IL @ 150 kHz, 150 W.

Frequency Range: 112-137 MHz
Max. Input Power: Up to 150 W
Isolation: > 75 dB
Insertion Loss: 3.2 dB
VSWR: ≤ 1.50:1
Impedance: 50 Ω
Connector: N(f)
Weight: 27.20 kg
Dimensions: 1050 × 482 × 535 mm
Cavity Diameter: 8"
Channels: 4
Frequency Stability: 0.8 ppm/C
Operating Temp.: -30C to +60C
Mounting: 19-inch rack (12U)

Go to Product Request quote

UHF ·380-470 MHz

Combiners UHF-CMB-5-8

5-Channel Cavity Combiner UHF (8-Inch)

5 channel UHF combiner, 380-470 MHz, > 75 dB Tx-Tx isolation, 3.7 dB IL @ 450 kHz, 150 W.

Frequency Range: 380-470 MHz
Max. Input Power: Up to 150 W
Isolation: > 75 dB
Insertion Loss: 3.7 dB
VSWR: ≤ 1.50:1
Impedance: 50 Ω
Connector: N(f)
Weight: 25.00 kg
Dimensions: 420 × 482 × 978 mm
Cavity Diameter: 8"
Channels: 5
Frequency Stability: 0.8 ppm/C
Operating Temp.: -30C to +60C
Mounting: 19-inch rack (22U)

Go to Product Request quote

VHF ·136-175 MHz

Combiners VHF-CMB-5-8

5-Channel Cavity Combiner VHF (8-Inch)

5 channel VHF combiner, 136-175 MHz, > 75 dB Tx-Tx isolation, 3.6 dB IL @ 150 kHz, 150 W.

Frequency Range: 136-175 MHz
Max. Input Power: Up to 150 W
Isolation: > 75 dB
Insertion Loss: 3.6 dB
VSWR: ≤ 1.50:1
Impedance: 50 Ω
Connector: N(f)
Weight: 33.00 kg
Dimensions: 850 × 482 × 978 mm
Cavity Diameter: 8"
Channels: 5
Frequency Stability: 0.8 ppm/C
Operating Temp.: -30C to +60C
Mounting: 19-inch rack (22U)

Go to Product Request quote

UHF ·380-470 MHz

Combiners UHF-CMB-6-8

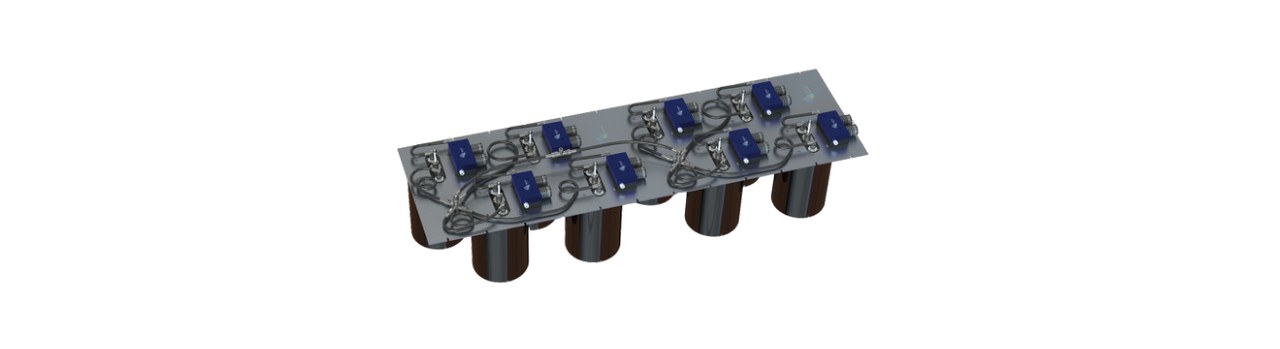

6-Channel Cavity Combiner UHF (8-Inch)

6 channel UHF combiner, 380-470 MHz, > 75 dB Tx-Tx isolation, 3.8 dB IL @ 450 kHz, 150 W.

Frequency Range: 380-470 MHz
Max. Input Power: Up to 150 W
Isolation: > 75 dB
Insertion Loss: 3.8 dB
VSWR: ≤ 1.50:1
Impedance: 50 Ω
Connector: N(f)
Weight: 30.00 kg
Dimensions: 420 × 482 × 1156 mm
Cavity Diameter: 8"
Channels: 6
Frequency Stability: 0.8 ppm/C
Operating Temp.: -30C to +60C
Mounting: 19-inch rack (26U)

Go to Product Request quote

VHF ·136-175 MHz

Combiners VHF-CMB-6-8

6-Channel Cavity Combiner VHF (8-Inch)

6 channel VHF combiner, 136-175 MHz, > 75 dB Tx-Tx isolation, 3.7 dB IL @ 150 kHz, 150 W.

Frequency Range: 136-175 MHz
Max. Input Power: Up to 150 W
Isolation: > 75 dB
Insertion Loss: 3.7 dB
VSWR: ≤ 1.50:1
Impedance: 50 Ω
Connector: N(f)
Weight: 39.00 kg
Dimensions: 850 × 482 × 1156 mm
Cavity Diameter: 8"
Channels: 6
Frequency Stability: 0.8 ppm/C
Operating Temp.: -30C to +60C
Mounting: 19-inch rack (26U)

Go to Product Request quote

UHF ·380-470 MHz

Combiners UHF-CMB-7-8

7-Channel Cavity Combiner UHF (8-Inch)

7 channel UHF combiner, 380-470 MHz, > 75 dB Tx-Tx isolation, 3.9 dB IL @ 450 kHz, 150 W.

Frequency Range: 380-470 MHz
Max. Input Power: Up to 150 W
Isolation: > 75 dB
Insertion Loss: 3.9 dB
VSWR: ≤ 1.50:1
Impedance: 50 Ω
Connector: N(f)
Weight: 35.00 kg
Dimensions: 420 × 482 × 1378 mm
Cavity Diameter: 8"
Channels: 7
Frequency Stability: 0.8 ppm/C
Operating Temp.: -30C to +60C
Mounting: 19-inch rack (31U)

Go to Product Request quote

VHF ·136-175 MHz

Combiners VHF-CMB-7-8

7-Channel Cavity Combiner VHF (8-Inch)

7 channel VHF combiner, 136-175 MHz, > 75 dB Tx-Tx isolation, 3.8 dB IL @ 150 kHz, 150 W.

Frequency Range: 136-175 MHz
Max. Input Power: Up to 150 W
Isolation: > 75 dB
Insertion Loss: 3.8 dB
VSWR: ≤ 1.50:1
Impedance: 50 Ω
Connector: N(f)
Weight: 46.00 kg
Dimensions: 850 × 482 × 1156 mm
Cavity Diameter: 8"
Channels: 7
Frequency Stability: 0.8 ppm/C
Operating Temp.: -30C to +60C
Mounting: 19-inch rack (26U)

Go to Product Request quote

UHF ·380-470 MHz

Combiners UHF-H-CMB-3

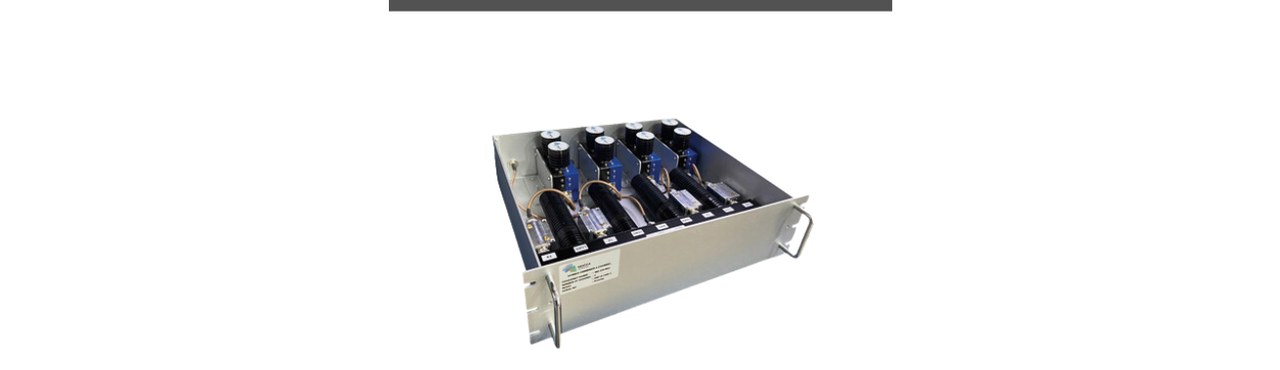

UHF 3-Channel Hybrid Combiner

380-470 MHz (5 sub-bands), 3 channels, 50 W/port, > 100 dB isolation, 6.2 dB IL. < 20 MHz spacing.

Frequency Range: 380-470 MHz
Max. Input Power: Up to 50 W
Isolation: > 100 dB
Insertion Loss: 6.2 dB
VSWR: ≤ 1.50:1
Impedance: 50 Ω
Connector: N(f)
Weight: 9.60 kg
Dimensions: 132 × 482 × 465 mm
Channels: 3
Operating Temp.: -30°C to +60°C
Mounting: 19-inch rack

Go to Product Request quote

UHF ·380-470 MHz

Combiners UHF-CMB-4-8

UHF 4-Channel Cavity Combiner (8-Inch)

380-470 MHz, 4 channels, 150 W/port, > 75 dB isolation, 3.4 dB IL @ ΔTx 450 kHz. 18U.

Frequency Range: 380-470 MHz
Max. Input Power: Up to 150 W
Isolation: > 75 dB
Insertion Loss: 3.4 dB
VSWR: ≤ 1.50:1
Impedance: 50 Ω
Connector: N(f)
Weight: 20.00 kg
Dimensions: 420 × 482 × 800 mm
Cavity Diameter: 8"
Channels: 4
Frequency Stability: 0.8 ppm/°C
Operating Temp.: -30°C to +60°C
Mounting: 19-inch rack

Go to Product Request quote

UHF ·380-470 MHz

Combiners UHF-H-CMB-4

UHF 4-Channel Hybrid Combiner

380-470 MHz (5 sub-bands), 4 channels, 50 W/port, > 100 dB isolation, 7.5 dB IL. < 20 MHz spacing.

Frequency Range: 380-470 MHz
Max. Input Power: Up to 50 W
Isolation: > 100 dB
Insertion Loss: 7.5 dB
VSWR: ≤ 1.50:1
Impedance: 50 Ω
Connector: N(f)
Weight: 11.55 kg
Dimensions: 132 × 482 × 465 mm
Channels: 4
Operating Temp.: -30°C to +60°C
Mounting: 19-inch rack

Go to Product Request quote

UHF ·380-470 MHz

Combiners UHF-CMB-8-8

UHF 8-Channel Cavity Combiner (8-Inch)

380-470 MHz, 8 channels, 150 W/port, > 75 dB isolation, 4.0 dB IL @ ΔTx 450 kHz. 36U.

Frequency Range: 380-470 MHz
Max. Input Power: Up to 150 W
Isolation: > 75 dB
Insertion Loss: 4.0 dB
VSWR: ≤ 1.50:1
Impedance: 50 Ω
Connector: N(f)
Weight: 40.00 kg
Dimensions: 420 × 482 × 1600 mm
Cavity Diameter: 8"
Channels: 8
Frequency Stability: 0.8 ppm/°C
Operating Temp.: -30°C to +60°C
Mounting: 19-inch rack

Go to Product Request quote

VHF ·136-175 MHz

Combiners VHF-CMB-2-8

VHF 2-Channel Cavity Combiner (8-Inch)

136-175 MHz, 2 channels, 150 W per port, > 75 dB Tx-Tx isolation, 2.4 dB IL @ ΔTx 150 kHz. 9U.

Frequency Range: 136-175 MHz
Max. Input Power: Up to 150 W
Isolation: > 75 dB
Insertion Loss: 2.4 dB
VSWR: ≤ 1.50:1
Impedance: 50 Ω
Connector: N(f)
Weight: 13.00 kg
Dimensions: 850 × 482 × 400 mm
Cavity Diameter: 8"
Channels: 2
Frequency Stability: 0.8 ppm/°C
Operating Temp.: -30°C to +60°C
Mounting: 19-inch rack

Go to Product Request quote

VHF ·136-175 MHz

Combiners VHF-CMB-4-8

VHF 4-Channel Cavity Combiner (8-Inch)

136-175 MHz, 4 channels, 150 W/port, > 75 dB isolation, 3.4 dB IL @ ΔTx 150 kHz. 18U.

Frequency Range: 136-175 MHz
Max. Input Power: Up to 150 W
Isolation: > 75 dB
Insertion Loss: 3.4 dB
VSWR: ≤ 1.50:1
Impedance: 50 Ω
Connector: N(f)
Weight: 26.00 kg
Dimensions: 850 × 482 × 800 mm
Cavity Diameter: 8"
Channels: 4
Frequency Stability: 0.8 ppm/°C
Operating Temp.: -30°C to +60°C
Mounting: 19-inch rack

Go to Product Request quote
